Circuit Breakers Technical

In the modern world, where electricity powers almost every aspect of our lives, ensuring electrical safety is paramount. Circuit breakers, as essential electrical safety devices, play a crucial role in protecting power systems from damage and preventing electrical shock. This article delves into the technical aspects of circuit breakers, exploring their types, components, and functions.

What is a Circuit Breaker?

A circuit breaker is an automatic switch designed to protect an electric circuit from damage caused by overload or short circuits. Its basic function is to interrupt current flow when it exceeds a certain level, thereby preventing equipment damage and ensuring safety. Unlike fuses, which need to be replaced after a single use, most breakers can be reset and reused.

Basic Circuit Breaker Components

A basic circuit breaker consists of several key components:

• Stationary Contact and Moving Contact: These are the primary contacts that allow or interrupt the flow of electric current.
• Switch Linkage: Connects the moving contact to the operating mechanism.
• Copper Coil: Generates a magnetic field when current flows through it.
• Bimetallic Strip: Utilizes thermal expansion to trip the breaker in case of overload.
• Arc Chutes: Extinguish the arc formed when the contacts separate.
• Spring Action: Provides the force needed to open or close the contacts.

How a Circuit Breaker Works

When current flows through a circuit breaker, it passes through the copper coil, creating a magnetic field. Under normal current conditions, the magnetic field is not strong enough to move the switch linkage. However, if the current exceeds the rated current, the magnetic field becomes strong enough to pull the moving contact away from the stationary contact, interrupting the current flow.

In the case of overload, the bimetallic strip heats up due to thermal expansion, bending and triggering the tripping mechanism. This action opens the circuit, preventing further current flow and protecting the circuit from damage.

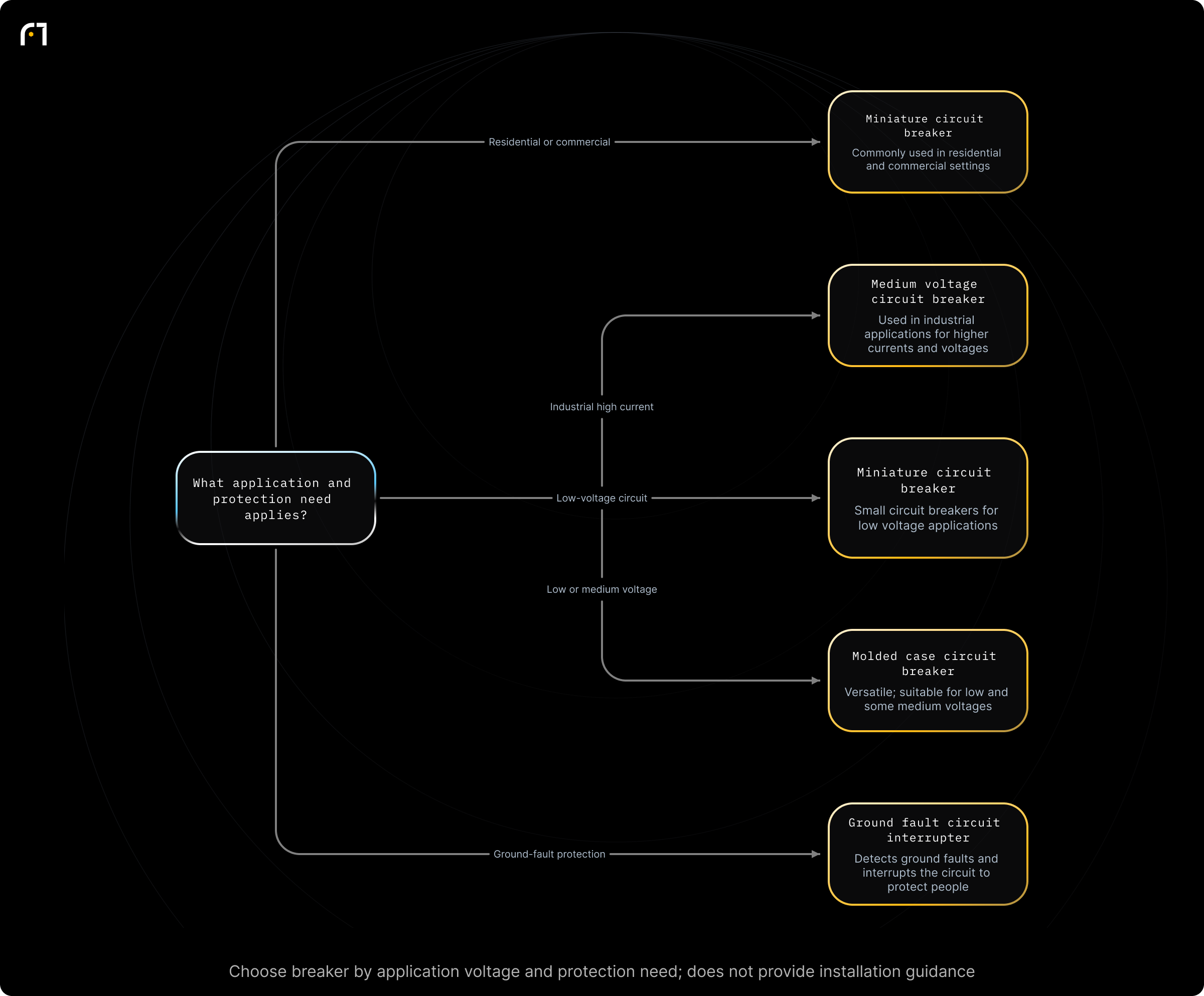

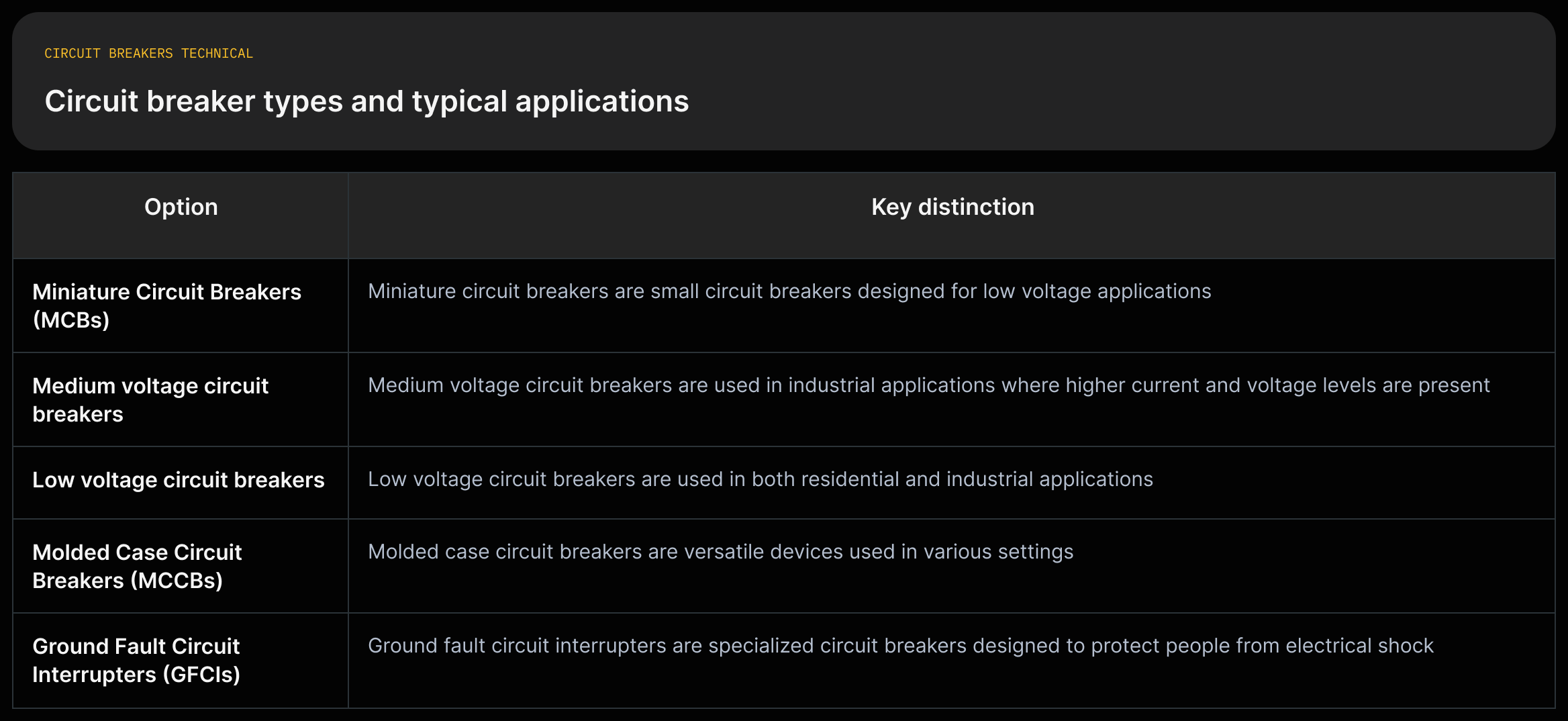

Types of Circuit Breakers

Miniature Circuit Breakers (MCBs)

Miniature circuit breakers are small circuit breakers designed for low voltage applications. They are commonly used in residential and commercial settings to protect circuits from overload and short circuits. MCBs are typically single pole or two pole, with a maximum current rating suitable for household circuits.

Medium Voltage Circuit Breakers

Medium voltage circuit breakers are used in industrial applications where higher current and voltage levels are present. These breakers are designed to handle more significant power loads and are often equipped with advanced protective relays to detect unsafe levels of current flow.

Low Voltage Circuit Breakers

Low voltage circuit breakers are used in both residential and industrial applications to protect circuits operating at lower voltages. They include molded case circuit breakers (MCCBs), which offer short circuit protection and are suitable for a wide range of applications.

Molded Case Circuit Breakers (MCCBs)

Molded case circuit breakers are versatile devices used in various settings. They consist of a molded case that houses the breaker components, providing insulation and protection. MCCBs are available in different sizes and ratings, making them suitable for both low and medium voltage applications.

Ground Fault Circuit Interrupters (GFCIs)

Ground fault circuit interrupters are specialized circuit breakers designed to protect people from electrical shock. They detect ground faults, which occur when current flows through an unintended path, and interrupt the circuit to prevent harm.

Tripping Mechanisms in Circuit Breakers

Circuit breakers employ different tripping mechanisms to interrupt current flow:

• Thermal Magnetic: Combines thermal and magnetic tripping mechanisms to provide protection against overload and short circuits.
• Magnetic Breaker: Uses a magnetic field to trip the breaker in case of a short circuit.
• Bimetallic Strip: Utilizes thermal expansion to trip the breaker during overload conditions.

Circuit Breaker Panels

A circuit breaker panel, also known as a breaker box, houses multiple circuit breakers and distributes power to various circuits within a building. It serves as the central hub for electrical safety, allowing for easy access to breakers for maintenance and resetting.

Protective Relays and Circuit Breakers

Protective relays are devices that detect abnormal conditions in power systems, such as short circuits or overloads. They work in conjunction with circuit breakers to ensure timely interruption of current flow, preventing equipment damage and ensuring safety.

The Role of Circuit Breakers in Power Systems

Circuit breakers are integral to power systems, providing essential protection against electrical faults. They help maintain the stability and reliability of power distribution by preventing overloads and short circuits from causing widespread damage.

Conclusion

In conclusion, circuit breakers are vital components in modern electrical systems, ensuring safety and reliability. From miniature circuit breakers in homes to medium voltage circuit breakers in industrial applications, these devices protect circuits from overloads, short circuits, and other electrical faults. Understanding the technical aspects of circuit breakers, including their components, types, and tripping mechanisms, is crucial for anyone involved in electrical work or safety. By interrupting current flow at unsafe levels, circuit breakers protect both people and equipment, making them indispensable in our electrified world.
