Amazon Resource Name (ARN)

In the vast ecosystem of Amazon Web Services (AWS), managing and identifying resources efficiently is crucial for seamless operations. One of the essential components that facilitate this is the Amazon Resource Name, or ARN. This article delves into the definition of ARN, its structure, and its significance in AWS, while incorporating key terms like AWS account, AWS resources, and more.

What is an ARN?

An Amazon Resource Name (ARN) is a unique identifier used to specify AWS resources. It allows users to unambiguously identify and locate resources across different AWS services. ARNs are essential for managing permissions, tracking resources, and ensuring security within an AWS account.

The Structure of an ARN

An ARN follows a specific pattern that typically includes several components, each separated by a colon (:) or a forward slash (/). The general format of an ARN is:

arn:partition:service:region:account-id:resource-type/resource-id

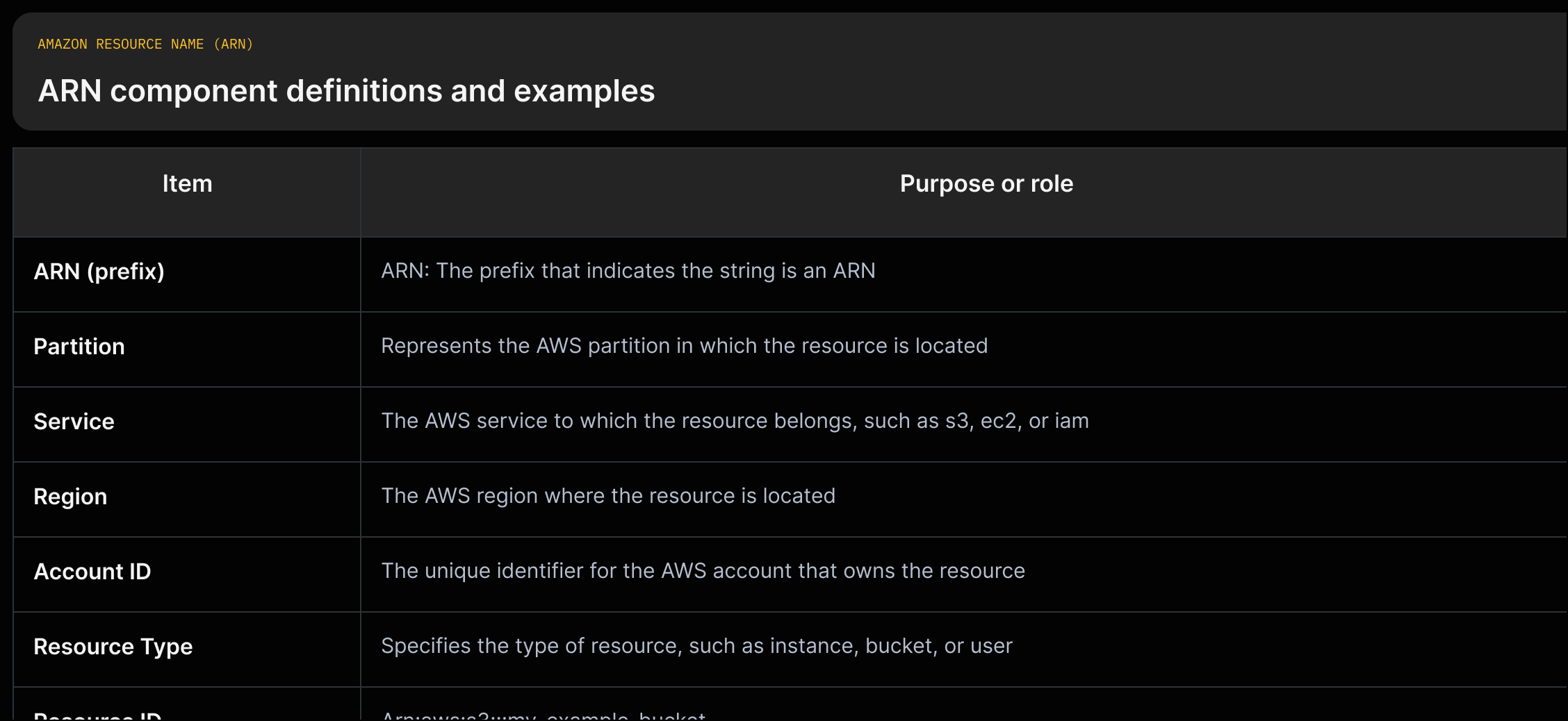

Breaking Down the Components

1. ARN: The prefix that indicates the string is an ARN.
2. Partition: Represents the AWS partition in which the resource is located. Common partitions include aws (standard AWS regions), aws-cn (China regions), and aws-gov (AWS GovCloud).
3. Service: The AWS service to which the resource belongs, such as s3, ec2, or iam.
4. Region: The AWS region where the resource is located. This can be omitted for global services.
5. Account ID: The unique identifier for the AWS account that owns the resource.
6. Resource Type: Specifies the type of resource, such as instance, bucket, or user.
7. Resource ID: The unique identifier for the resource within the specified resource type.

Example of an ARN

Consider the following example of an ARN for an S3 bucket:

arn:aws:s3:::my-example-bucket

In this example, aws is the partition, s3 is the service, and my-example-bucket is the resource ID.

The Role of ARNs in AWS

ARNs play a pivotal role in AWS by providing a standardized way to identify resources. This is crucial for:

• Access Management: ARNs are used in IAM policies to define permissions for users and groups. By specifying ARNs, you can control who can access specific resources and what actions they can perform.
• Security: By using ARNs, you can ensure that only authorized users have access to sensitive resources, thereby enhancing security.
• Resource Tracking: ARNs help in tracking resources across different AWS accounts and regions, making it easier to manage and audit resources.

Navigating ARNs with Wildcards

In some cases, you may need to specify multiple resources in an IAM policy. AWS allows the use of wildcard characters, such as the asterisk (*) and question mark (?), to match multiple resources.

• Asterisk (*): Represents zero or more characters. For example, arn:aws:s3:::my-bucket/* matches all objects within the my-bucket.
• Question Mark (?): Represents a single character. For example, arn:aws:ec2:us-west-2:123456789012:instance/i-0abcd1234efgh5678? matches instances with a single character variation at the end.

ARNs in Different AWS Partitions

AWS operates in multiple partitions, each catering to different regions and compliance requirements:

• AWS Standard Regions: The most common partition, represented by aws.
• AWS GovCloud: A partition designed for government workloads, represented by aws-gov.
• AWS China Regions: A partition for resources located in China, represented by aws-cn.

Writing IAM Policies with ARNs

When writing IAM policies, ARNs are used to specify the resources to which the policy applies. For example, an IAM policy might allow a user to access all objects in a specific S3 bucket:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "s3:GetObject",
      "Resource": "arn:aws:s3:::my-example-bucket/*"
    }
  ]
}

In this policy, the ARN specifies all objects within the my-example-bucket.

Common Use Cases and Examples

Identifying Resources

ARNS are used to identify various AWS resources, such as:

• EC2 Instances: arn:aws:ec2:us-west-2:123456789012:instance/i-0abcd1234efgh5678
• S3 Buckets: arn:aws:s3:::my-example-bucket
• IAM Users: arn:aws:iam::123456789012:user/JohnDoe

Managing Permissions

By using ARNs in IAM policies, you can grant or restrict access to specific resources. For example, you can allow a user to start or stop a specific EC2 instance:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "ec2:StartInstances",
        "ec2:StopInstances"
      ],
      "Resource": "arn:aws:ec2:us-west-2:123456789012:instance/i-0abcd1234efgh5678"
    }
  ]
}

Conclusion

Amazon Resource Names (ARNs) are a fundamental aspect of the AWS ecosystem, providing a standardized way to identify and manage resources. By understanding the structure and use of ARNs, AWS users can effectively manage access, enhance security, and streamline resource management across their AWS accounts. Whether you're a seasoned AWS professional or just starting your cloud journey, mastering ARNs is essential for navigating the AWS landscape.
