Consistent Hashing

In the realm of distributed systems, efficient data partitioning and load balancing are crucial for optimal performance. One of the most effective techniques to achieve these goals is consistent hashing. This article delves into the intricacies of consistent hashing, exploring its definition, components, and significance in distributed systems.

What is Consistent Hashing?

Consistent hashing is a technique used in distributed systems to distribute data across multiple nodes. Unlike traditional hashing methods, consistent hashing minimizes the impact of adding or removing nodes, making it a robust solution for dynamic environments. The primary objective of consistent hashing is to ensure that the addition or removal of a node affects only a small portion of the data, thereby maintaining balance and efficiency.

The Role of Hash Functions

At the core of consistent hashing lies the hash function. A hash function is a mathematical algorithm that converts input data into a fixed-size hash value. In the context of consistent hashing, the same hash function is used to map both data objects and nodes onto a hash ring, a virtual ring structure that represents the output range of the hash function.

Non-Cryptographic vs. Cryptographic Hash Functions

Consistent hashing typically employs non-cryptographic hash functions due to their speed and efficiency. These functions are designed to produce evenly distributed hash values, ensuring that data is spread uniformly across the hash ring. Cryptographic hash functions, while secure, are generally slower and not necessary for the purposes of consistent hashing.

The Hash Ring and Virtual Nodes

The hash ring is a circular data structure that represents the range of possible hash values. Each node in the distributed system is assigned a position on this ring based on its hash value. To further enhance load balancing, consistent hashing uses virtual nodes. A virtual node is a logical representation of a physical node, and each physical node can be assigned multiple virtual nodes on the hash ring. This technique, known as assigning multiple positions, helps in efficiently distributing keys and handling node failures.

Virtual Nodes Improve Load Balancing

Virtual nodes play a crucial role in consistent hashing optimization. By distributing virtual nodes evenly across the hash ring, the system can achieve better load balancing. When a new node is added or an existing node fails, only a small portion of the data needs to be redistributed among the remaining nodes, minimizing disruption.

How Consistent Hashing Works

To understand how consistent hashing works, consider a scenario with multiple cache servers. Each server node is assigned a position on the hash ring based on its node hash. Data objects are also hashed using the same hash function, and their hash values determine their position on the ring.

Data Partitioning and Node Responsibility

When a data object is introduced, its hash value is calculated, and the object is assigned to the closest node in the clockwise direction on the hash ring. This node is responsible for storing the data object. If a node fails or is removed, the data objects it was responsible for are reassigned to its immediate neighboring node, ensuring continuity.

Adding and Removing Nodes

Consistent hashing efficiently handles changes in the number of nodes. When a new node is added, it is assigned a position on the hash ring, and only the data objects between the new node and its immediate neighboring node need to be redistributed. Similarly, when a node fails, its data objects are transferred to the next server node in the clockwise direction.

Consistent Hashing in Practice

Consistent hashing is widely used in distributed systems for load balancing and data partitioning. It is particularly beneficial in scenarios where the number of servers or cache servers is dynamic. By using consistent hashing, systems can maintain a balanced distribution of data keys, even as nodes are added or removed.

Consistent Hashing Implementation

Implementing consistent hashing involves several key components:

1. Node Identifiers and Node IDs: Each node is assigned a unique identifier, which is hashed to determine its position on the hash ring.
2. Hash Function Selection: A suitable hash function is chosen to ensure an even distribution of hash values across the ring.
3. Virtual Nodes: Virtual nodes are used to improve load balancing and minimize the impact of node failures.
4. Data Structure: A hash table or similar data structure is used to map data objects to their corresponding nodes.

Multi-Probe Consistent Hashing

Multi-probe consistent hashing is an advanced technique that involves probing multiple positions on the hash ring to find the best node for a data object. This approach can further enhance load balancing and fault tolerance in distributed systems.

Challenges and Considerations

While consistent hashing offers numerous benefits, it also presents certain challenges. Selecting the right hash function and determining the optimal number of virtual nodes are critical for achieving efficient load balancing. Additionally, consistent hashing must be carefully implemented to handle edge cases, such as node failures and network partitions.

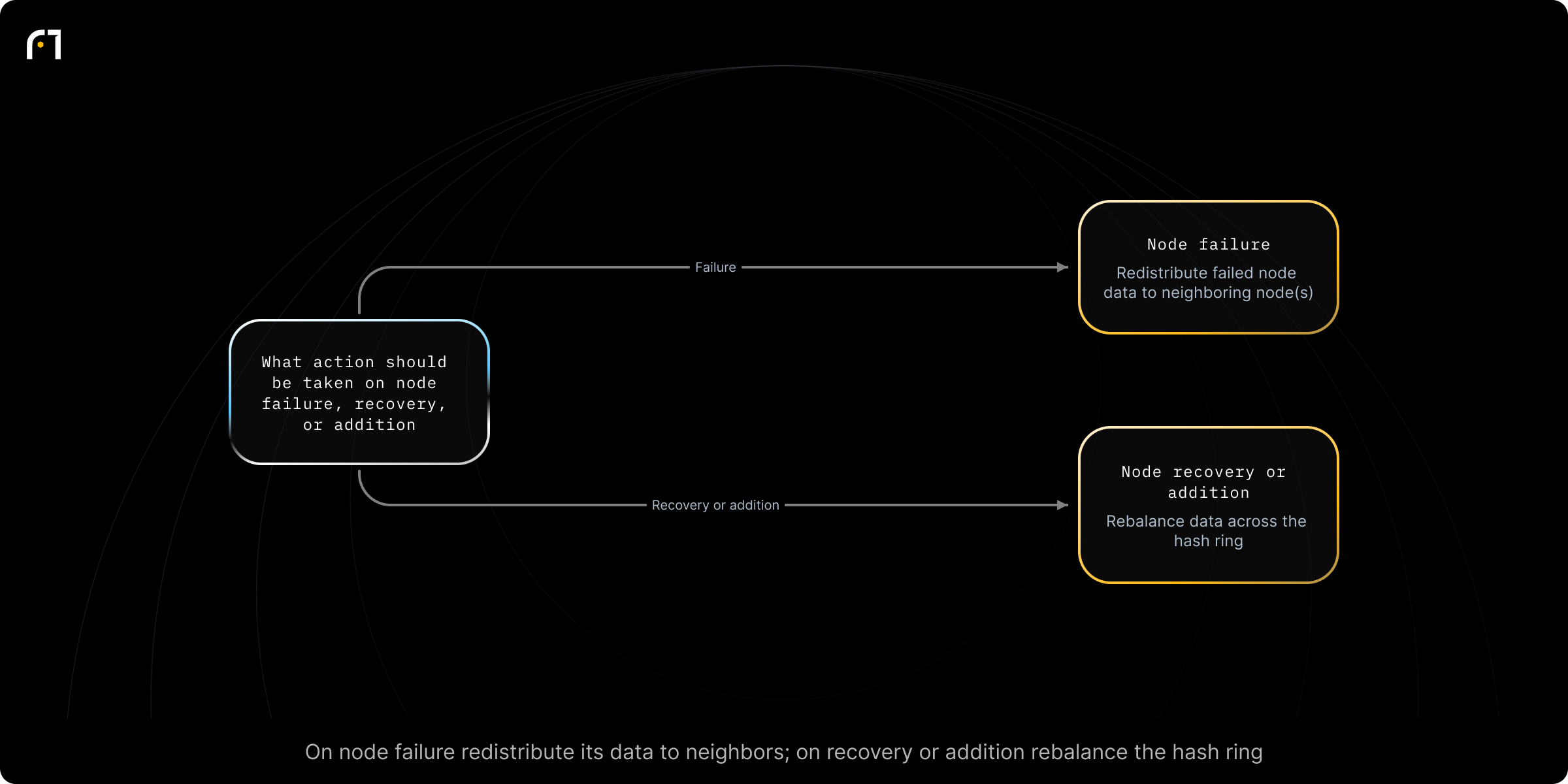

Node Failure and Recovery

In the event of a node failure, consistent hashing ensures that only a small portion of the data is affected. The failed node's data is redistributed to its neighboring node, maintaining system stability. When the node recovers or a new node is added, the data is rebalanced across the hash ring.

Efficiently Distributing Keys

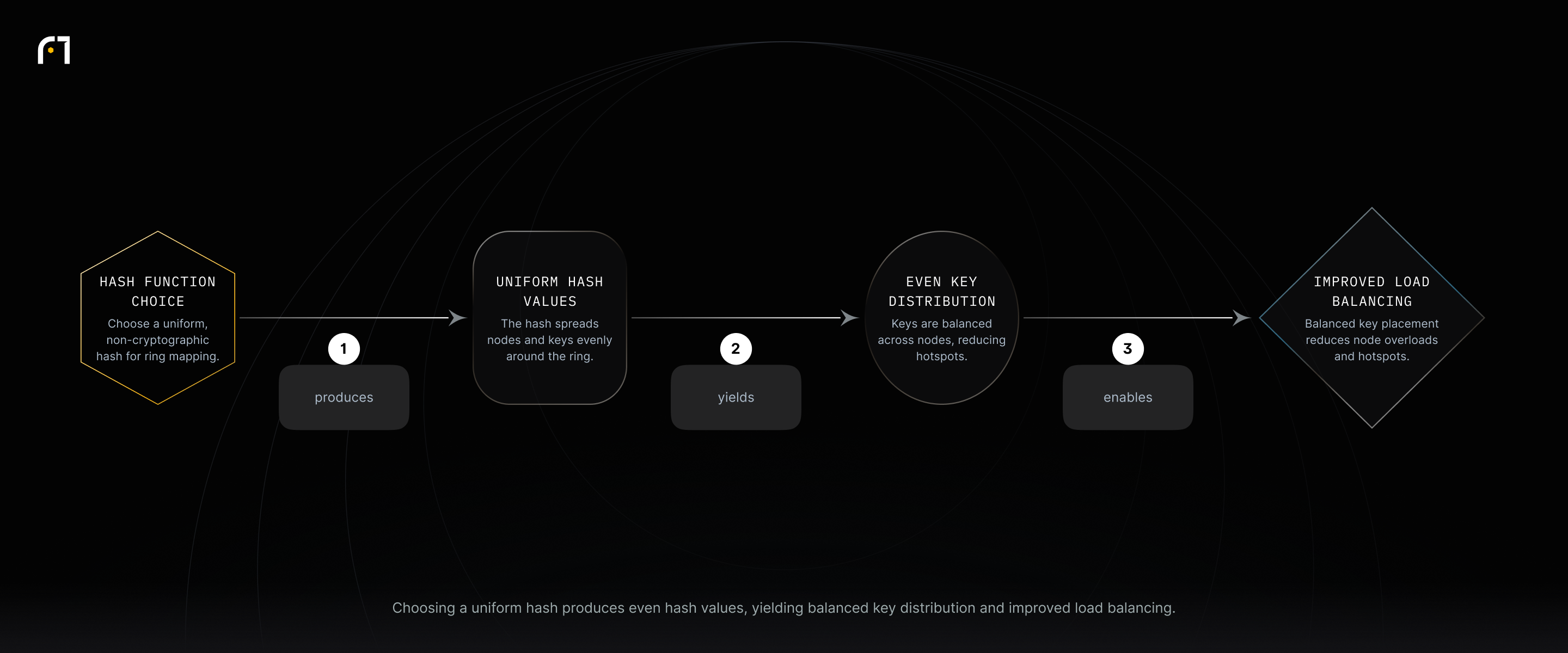

Consistent hashing aims to distribute data keys evenly across the hash ring. This is achieved by using a hash function that produces a uniform distribution of hash values. The modulo n operation, commonly used in simple hash functions, is avoided in favor of more sophisticated techniques that ensure even distribution.

Conclusion

Consistent hashing is a powerful tool for managing data distribution and load balancing in distributed systems. By leveraging hash functions, virtual nodes, and a hash ring structure, consistent hashing minimizes the impact of node changes and ensures efficient data partitioning. As distributed systems continue to evolve, consistent hashing remains a fundamental technique for achieving scalability and resilience.

In summary, consistent hashing's primary objective is to provide a robust and efficient method for distributing data across multiple nodes. By understanding its principles and implementation, organizations can optimize their distributed systems for performance and reliability.
