Cross zone replication

Cross-zone replication maintains copies of data in different availability zones within the same cloud region. Availability zones are separate infrastructure locations designed to limit the impact of localized failures. Keeping a copy outside the source zone can support recovery if that zone becomes unavailable.

How It Works

A typical setup has source data in one zone and a replica in another zone of the same region. The replication service creates a destination copy and transfers later changes to keep the copies aligned. The replicated unit might be a storage volume, a file set, or database records, depending on the service. Replicating that data does not necessarily copy the application configuration or every resource needed to use it.

Update timing and consistency also depend on the implementation. With asynchronous cross-zone replication, changes reach the destination after they are accepted at the source, so the replica can lag behind. Synchronous designs coordinate write acknowledgement with replication, but the precise guarantees depend on the service. The term itself therefore does not specify when a write becomes available in another zone.

Availability and Recovery

Cross-zone replication supports recovery by keeping data outside a potentially affected zone. If the source zone fails, a healthy replica may provide the data needed to restore service elsewhere. This benefit depends on the surrounding application being able to reach and use that copy; the presence of a replica alone is not enough.

Failover is the process of moving service to an alternative resource, and it may require separate configuration or manual action. Recovery time depends on those arrangements and on the application’s other dependencies. If replication is asynchronous, changes not yet copied may be missing after failover. Neither immediate recovery nor zero data loss follows automatically from zone separation.

Cross-Zone vs. Cross-Region Replication

• Copy Location: Cross-zone replication keeps copies in separate availability zones within one region. Cross-region replication places copies in another region, providing geographic separation beyond the boundaries of the source region.
• Failure Scope: Zone separation can help when a disruption affects one zone, but it does not independently protect against a disruption affecting the whole region. Cross-region replication can support recovery from regional disruption, provided the destination and the necessary recovery arrangements remain usable.

Multi-zone deployment is a broader architectural concept: it can distribute application components as well as data, whereas replication specifically describes the copying of data.

Replication and Historical Recovery

Cross-zone replication is not inherently a backup or a record of earlier data states. If an application deletes records, overwrites files, or writes corrupted data, those changes may also reach the replica. A copy in a different zone can therefore be healthy and current while still containing unwanted changes.

Historical recovery requires a way to retrieve an earlier usable state, such as retained backups, snapshots, or version history with suitable retention. Those protections are distinct from the location of the live copies and must be assessed separately. Replication status also matters: a configured relationship does not prove that the destination is up to date or usable. Checking replication health and validating recovery helps establish what protection the arrangement actually provides.

Planning and an Azure Example

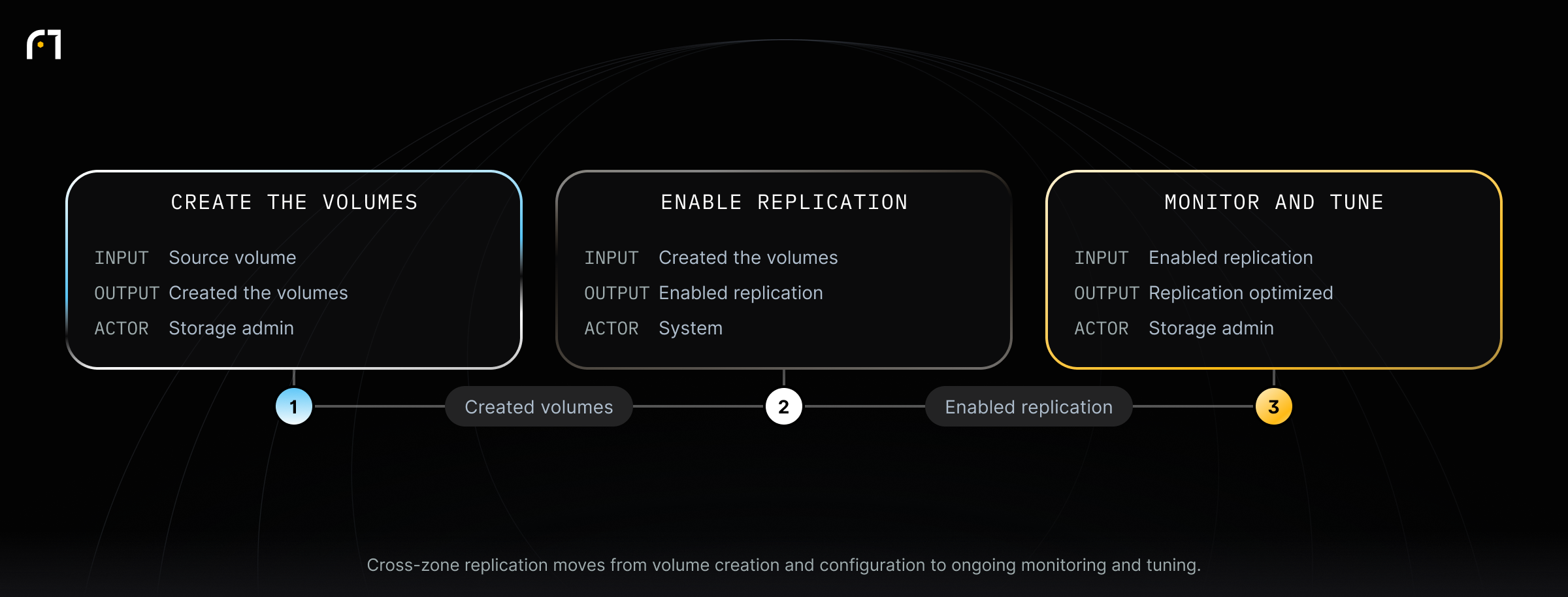

Planning starts with the amount of recent data loss the application can tolerate and how quickly service must be restored. Data-change volume, available replication throughput and the time needed to transfer updates affect whether the replica can keep pace. A high change rate alone does not determine a suitable schedule. Configuration needs to identify the source and destination, establish their replication relationship, and monitor lag and transfer health; recovery testing checks whether the application can actually use the copy.

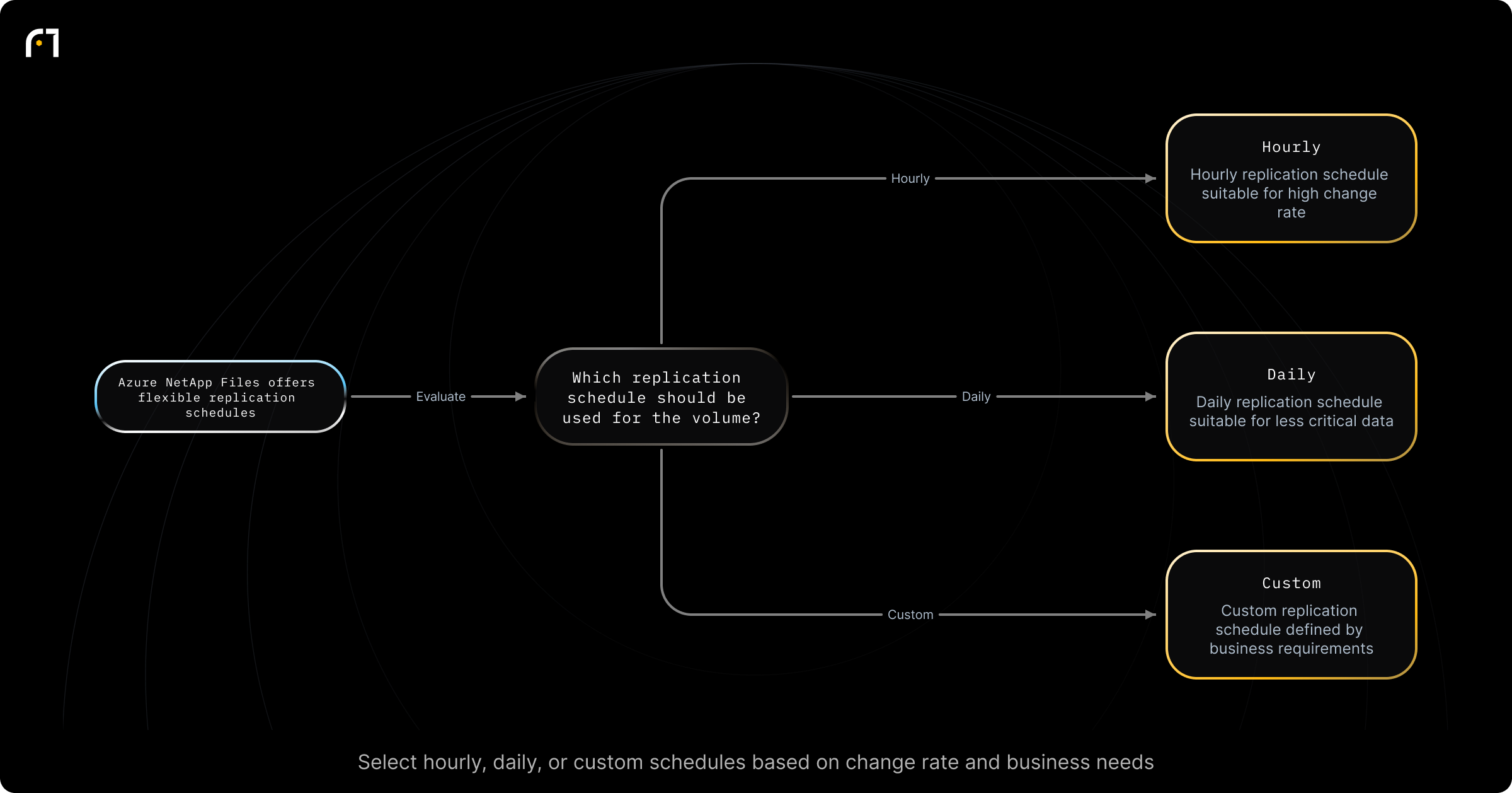

Azure NetApp Files is one implementation: it asynchronously replicates a source volume to a destination volume in another availability zone of the same region. Documented schedule options include every ten minutes, hourly and daily, subject to volume and service restrictions. These are service options, not universal cross-zone schedules or arbitrary custom intervals. The destination is normally read-only during replication and requires the service’s recovery procedure before read-write use.

Retaining a destination copy consumes storage capacity. Microsoft’s cross-zone model charges for provisioned capacity-pool size and tier without an additional data-replication charge; other services can price storage and transfer differently. Neither lower latency nor lower total cost is guaranteed merely by choosing zones instead of regions. Capacity, recovery performance and applicable service pricing all affect the practical comparison.
