Data Persistence Layer

In the realm of software development, the concept of a data persistence layer is pivotal for ensuring that data is stored and retrieved efficiently. This article delves into the intricacies of the data persistence layer, exploring its definition, components, and significance in modern software systems. We will also discuss how it interacts with other layers, such as the application and presentation layers, and the role it plays in maintaining data integrity and consistency.

What is a Data Persistence Layer?

In simple terms, a data persistence layer is a component of a software system responsible for storing and retrieving data from a data source, such as a database or file system. It acts as an intermediary between the application layer, where business logic resides, and the data source, ensuring that data is correctly stored and retrieved as needed.

Defining the Persistence Layer

The persistence layer is defined as the abstraction layer that handles all interactions with the data source. It provides a set of interfaces and methods for performing persistence operations, such as create, retrieve, update, and delete (CRUD) operations, on domain objects. These domain objects represent the data entities within the system and are mapped to database tables or other storage formats.

The Role of Domain Objects and Entities

Domain objects, also known as domain entities, are the core components of the persistence layer. They represent the data structures that are stored in the database tables. For instance, a User domain object might correspond to a users table in the database. The persistence layer ensures that these objects are correctly mapped to their respective tables and that any changes to the objects are reflected in the database.

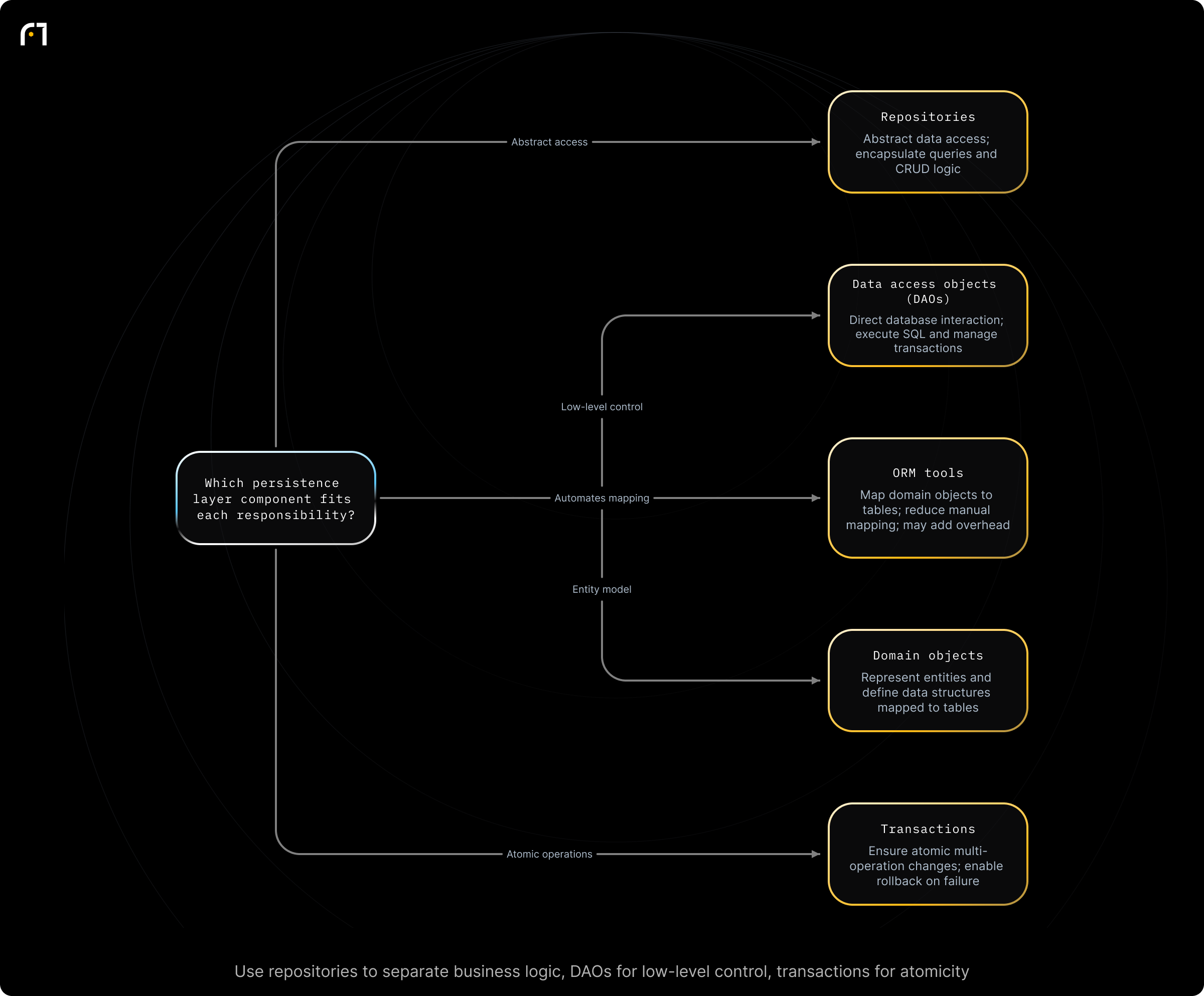

Components of the Persistence Layer

The persistence layer comprises several key components that work together to manage data storage and retrieval. These include:

1. Repositories

Repositories are a crucial part of the persistence layer, implementing the repository pattern to provide a clean interface for accessing data. They encapsulate the logic required to query the database and perform CRUD operations on domain objects. By using repositories, developers can separate business logic from data access logic, promoting a cleaner and more maintainable codebase.

2. Data Access Objects (DAOs)

Data Access Objects (DAOs) are another component of the persistence layer, responsible for directly interacting with the database. They provide methods for executing queries and transactions, abstracting the underlying database operations from the rest of the application.

3. Object-Relational Mapping (ORM) Tools

ORM tools, such as Hibernate or Entity Framework, are often used in the persistence layer to map domain objects to database tables. These tools automate the process of converting data between incompatible type systems, allowing developers to work with domain objects without worrying about the underlying database schema.

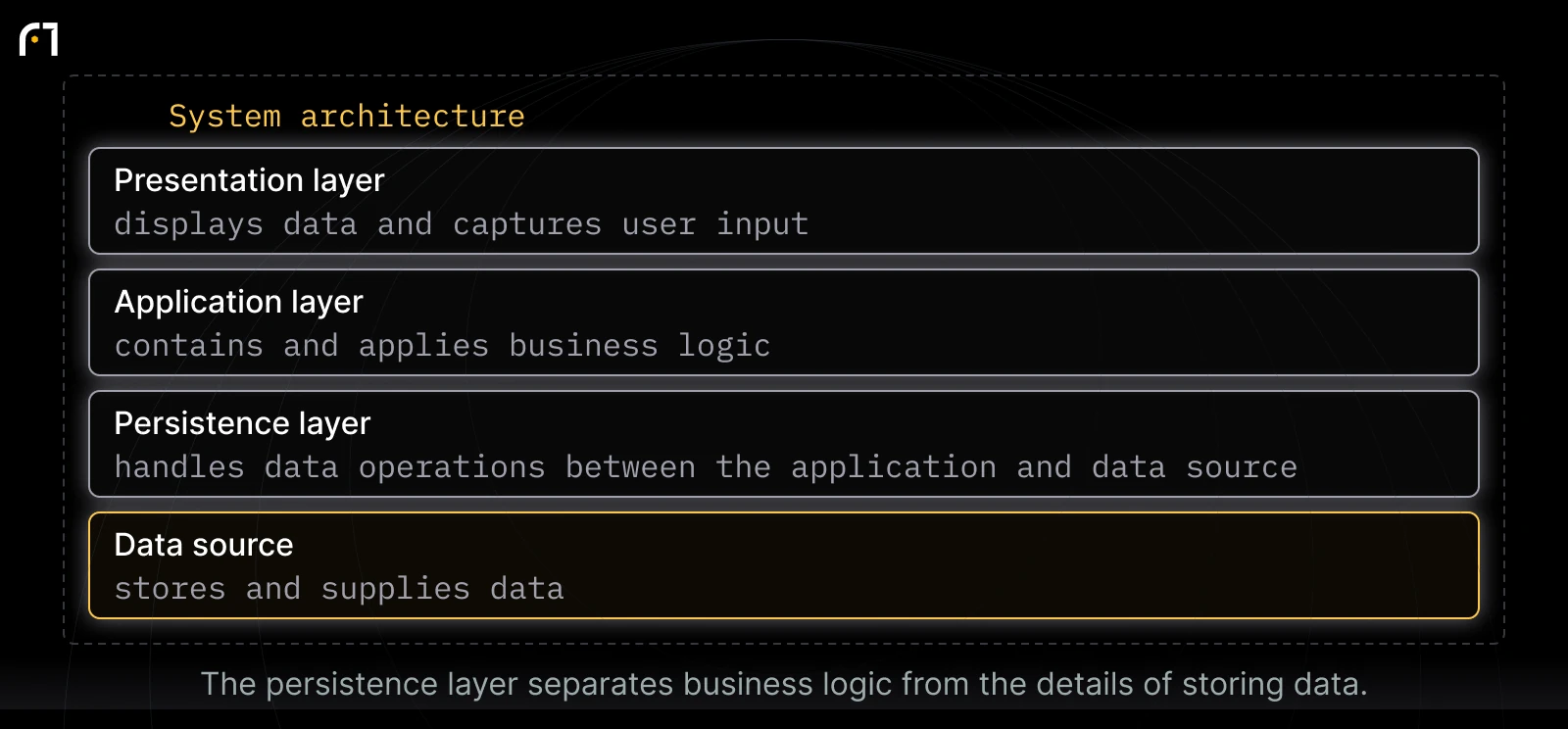

Interaction with Other Layers

The persistence layer is a critical part of the overall software architecture, interacting with both the application and presentation layers.

Application Layer

The application layer contains the business logic of the system, defining how data should be processed and manipulated. It interacts with the persistence layer to perform data operations, such as retrieving user information or updating product details. By separating business logic from data access logic, the application layer can focus on implementing the core functionality of the system without being concerned with how data is stored or retrieved.

Presentation Layer

The presentation layer is responsible for displaying data to the user and capturing user input. It interacts with the application layer to request data, which is then retrieved from the persistence layer. This separation of concerns ensures that changes to the user interface do not affect the underlying data storage mechanisms.

Importance of the Persistence Layer

The persistence layer plays a vital role in ensuring data integrity and consistency within a software system. Here are two reasons why it is essential:

1. Data Integrity

By abstracting data access logic, the persistence layer ensures that data is stored and retrieved correctly, preventing common mistakes such as data corruption or loss. It also supports transactions, allowing multiple operations to be executed as a single unit of work, ensuring that the system remains in a consistent state even in the event of a failure.

2. Scalability and Flexibility

The persistence layer provides a flexible and scalable solution for managing data storage. By using abstraction, developers can easily switch between different database types or storage solutions without affecting the rest of the application. This flexibility is crucial for systems that need to adapt to changing requirements or scale to accommodate increased data volumes.

Implementing the Persistence Layer

Implementing a robust persistence layer requires careful consideration of several factors, including the choice of database, the use of ORM tools, and the design of repositories and DAOs.

Choosing the Right Database

Selecting the appropriate database type is a critical decision that can impact the performance and scalability of the persistence layer. Developers must consider factors such as data volume, access patterns, and the need for transactions when choosing between relational databases, NoSQL databases, or other storage solutions.

Using ORM Tools

ORM tools can simplify the implementation of the persistence layer by automating the mapping of domain objects to database tables. However, developers must be cautious when using these tools, as they can introduce performance overhead and complexity if not used correctly.

Designing Repositories and DAOs

Repositories and DAOs should be designed to provide a clean and intuitive interface for accessing data. This involves defining methods for common persistence operations, such as querying, updating, and deleting data, and ensuring that these methods are implemented efficiently.

Testing the Persistence Layer

Testing is a crucial aspect of ensuring the reliability and correctness of the persistence layer. Unit tests should be written to verify that persistence operations are performed correctly and that data is stored and retrieved as expected.

Writing Unit Tests

Unit tests for the persistence layer should focus on testing the functionality of repositories and DAOs. This includes verifying that queries return the correct results, that data is correctly mapped to domain objects, and that transactions are handled properly.

Mocking Dependencies

When writing unit tests, it is often necessary to mock dependencies, such as the database or ORM tool, to isolate the code being tested. This allows developers to test the persistence layer in a controlled environment, ensuring that it behaves as expected under different conditions.

Conclusion

The data persistence layer is a fundamental component of modern software systems, providing a robust and flexible solution for managing data storage and retrieval. By abstracting data access logic, it ensures data integrity and consistency, while also promoting scalability and flexibility. Implementing a well-designed persistence layer requires careful consideration of database types, ORM tools, and the design of repositories and DAOs. With proper testing and implementation, the persistence layer can significantly enhance the reliability and maintainability of a software system, providing a solid foundation for building complex applications.
