Field Programmable Gate Array

Learn how FPGAs configure custom digital circuits, how they differ from GPUs and ASICs, and what limits their performance and mining use.

A field-programmable gate array (FPGA) is an integrated circuit whose digital logic and connections can be configured after manufacture, including after deployment. This allows the same chip to implement different digital circuits without fabricating new silicon. Configuration selects how existing electronic resources operate together; it does not create new transistors or give the device unlimited hardware capacity.

How Configuration Works

Inside a field-programmable gate array, configurable logic blocks perform logical operations and store state. Lookup tables can implement logic functions, while registers hold values between clock cycles. Programmable interconnects select paths between those blocks, forming a custom circuit. On-chip memory holds working data, which serves a different purpose from configuration information defining the circuit. Available logic, memory and configuration-storage technology vary by device; not every FPGA uses flash storage.

An engineer can describe the intended hardware using a hardware description language such as Verilog or VHDL. Development tools synthesize that description into a circuit design, map and route it onto available resources, and generate configuration data, commonly called a bitstream. Loading this configuration establishes the intended hardware behavior. This differs from merely installing software containing instructions for a processor to execute.

Performance and Applications

A field-programmable gate array can implement tailored datapaths: hardware paths built around the operations a workload needs. Independent operations can run in parallel, while pipelining divides processing into stages that work on different inputs simultaneously. These techniques suit some compute-intensive or timing-sensitive tasks, including signal processing and computing acceleration. For example, a signal-processing pipeline can handle successive samples without waiting for every earlier sample to finish all stages.

Acceleration, latency and energy efficiency depend on the workload, design, resource limits and data movement. A suitable implementation may outperform a GPU or deliver more work per joule, but neither advantage is universal.

Advertisement — FinchTrade.

FinchTrade services

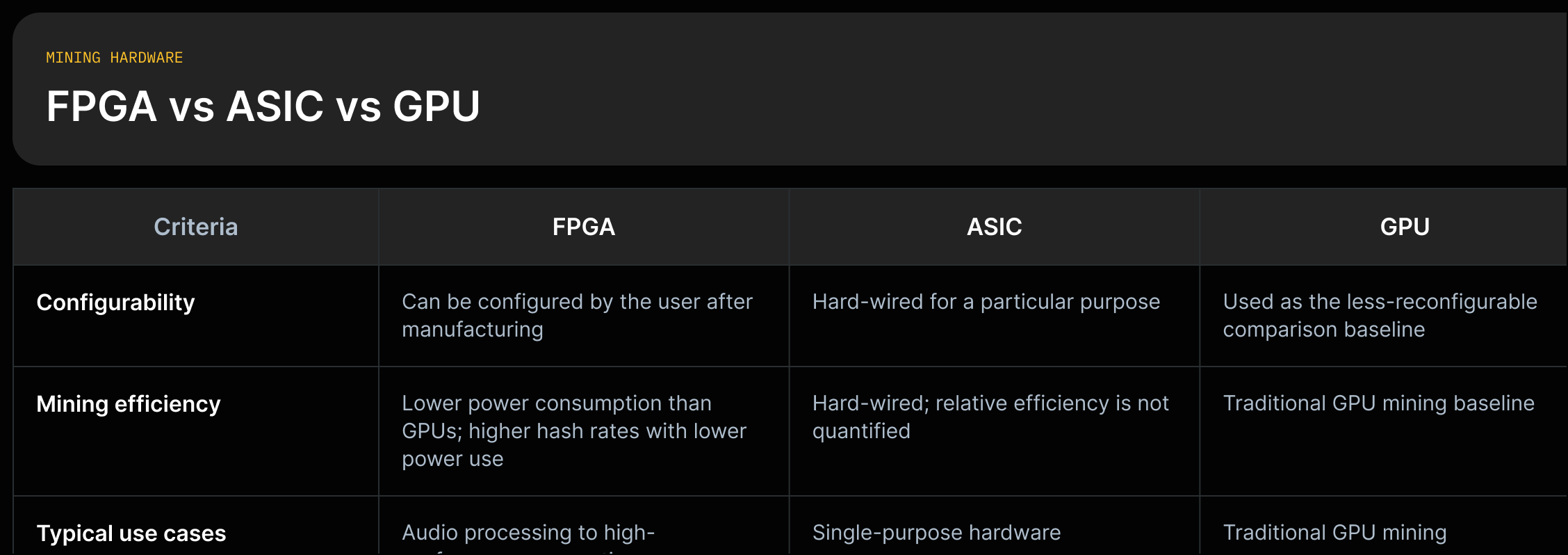

Comparison With CPUs, GPUs and ASICs

  • Programming Model: CPUs and GPUs execute programs using an established processor architecture. GPU software is programmable, and GPUs also perform parallel computation; the FPGA distinction is that configuration changes the implemented logic and connections themselves.
  • Specialization: An application-specific integrated circuit (ASIC) has a fabricated circuit specialized for its application rather than FPGA-style reconfigurable fabric. Specialization can improve efficiency without restricting the circuit to one simple operation.
  • Revision and Reuse: An FPGA allows hardware revisions and reuse without another chip-fabrication cycle, provided the new design fits its resources. This can avoid custom-fabrication expenditure, but it does not make development or equipment costs negligible.

Cryptocurrency Mining

In proof-of-work mining, hardware repeatedly hashes candidate inputs to seek a result meeting a network's target. A field-programmable gate array can implement a compatible hashing circuit. Switching algorithms requires a suitable configuration and sufficient device resources; reprogrammability does not guarantee support for every cryptocurrency. Bitcoin illustrates the distinction: an FPGA can implement its hashing operations, whereas a Bitcoin mining ASIC has circuitry specialized for those operations. Technical capability does not establish competitive hash rates, lower power consumption or profitability.

Practical Limitations

Developing a field-programmable gate array design requires appropriate tools and hardware-design expertise. Validation must check both logical correctness and timing: a circuit must produce the right result within its intended clock constraints. Finite logic, memory and routing resources can prevent a design from fitting or meeting performance goals. Equipment, engineering effort and electricity all contribute to total cost.
