Network Packet Inspection

Network packet inspection is the examination of network packets to understand traffic or evaluate it against security and traffic-management policies. A packet is a unit of data sent across a network. Its headers carry addressing and protocol information, while its payload carries the data being transported, which may include application content or additional protocol information.

How Packet Inspection Works

Network packet inspection starts with visibility into traffic, such as packets passing through a device or copies delivered to a monitoring system. Software parses relevant fields and, when accessible, content. It evaluates that information using policy rules, known-pattern signatures or protocol analysis. Findings can then feed logs, alerts or decisions about how traffic should be handled.

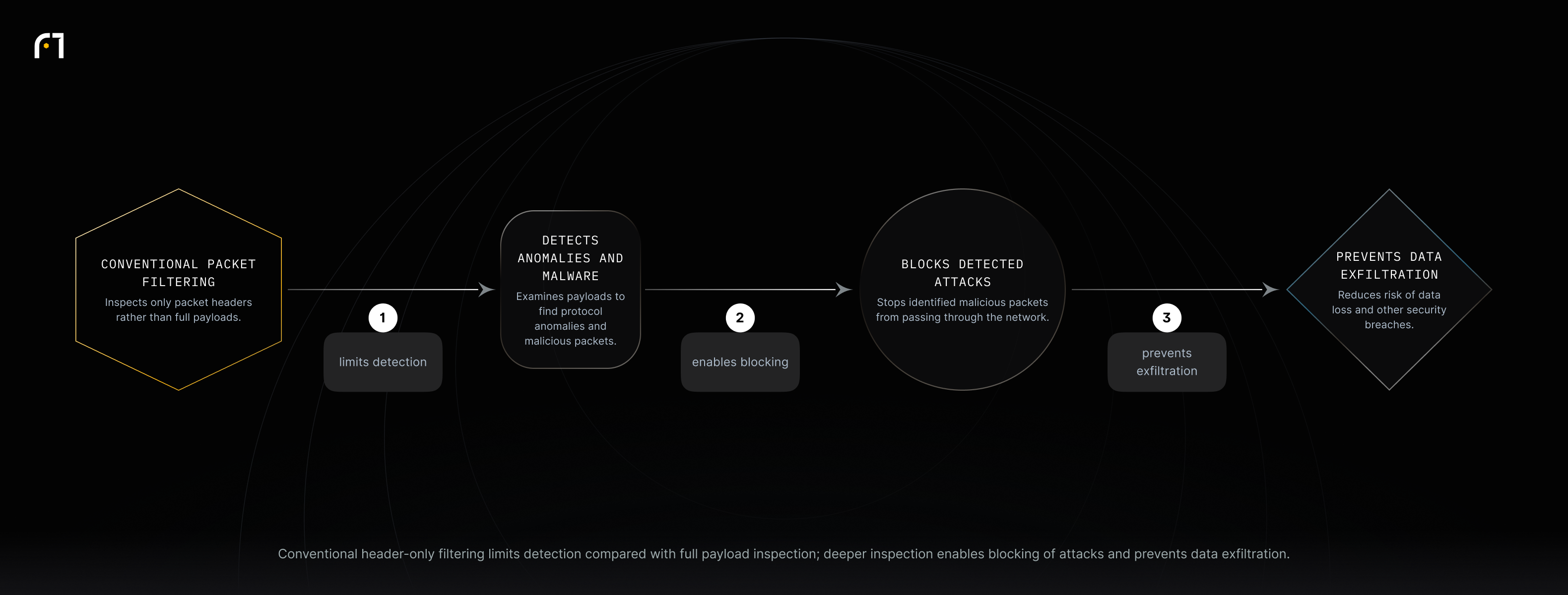

Basic header-based checks examine information such as source and destination addresses, transport ports where present, and protocol identifiers. Deep packet inspection (DPI) goes further by examining application-level information and accessible payload content. This can reveal application behavior that addresses and ports alone do not establish. These are not the only approaches: stateful inspection tracks connection context and can complement checks of individual fields or content. An inspecting system may combine several techniques rather than rely on a single inspection depth.

Monitoring and Enforcement

The outcome of network packet inspection depends on how the inspecting system is deployed and configured. A passive monitor observes copies of traffic and can generate logs or alerts, but it does not directly block the original packets. An inline system sits in the traffic path and, if configured to enforce policies, can allow, drop or otherwise control traffic.

Inspection supplies evidence for those decisions; it does not automatically take enforcement action. An intrusion detection system primarily identifies and reports suspected activity, while a suitably positioned intrusion prevention system can take blocking action. Findings may also prompt a review before a separate traffic control is changed.

Traffic Classification and Troubleshooting

Network packet inspection can help classify traffic by protocol or, where sufficient information is visible, by application. That classification can support access policies and decisions about which traffic receives priority. Security monitoring can use findings to highlight unexpected connections or departures from expected protocol behavior. For troubleshooting, packet information can help explain failed exchanges, repeated retransmissions or unexpected traffic patterns. A capture shows only the traffic visible at its observation point, so it may not establish the cause of a problem elsewhere. Inspection supports diagnosis and policy choices; it does not automatically improve network speed.

Visibility, Accuracy, and Privacy Limits

Encryption limits what an inspector can examine. DPI does not automatically make encrypted payloads readable: inspecting their content requires access to decrypted data. Some metadata, such as visible addresses, packet sizes or timing, may remain observable, depending on the protocol and observation point. Those signals can support analysis, but they are not equivalent to reading the underlying content.

Detection is also imperfect. Rules, signatures and protocol analysis can miss threats or incorrectly flag legitimate traffic. Recognizing a known pattern does not prove that a packet is safe, and inspection alone does not guarantee data integrity or complete protection.

Network packet inspection also consumes processing capacity and memory, while retained captures require storage. More extensive analysis can increase resource demands and, for inline systems, may add latency; the effect depends on implementation and workload. Examining or retaining payloads can expose sensitive information, so inspection scope, access to captured data and retention periods are practical considerations.
